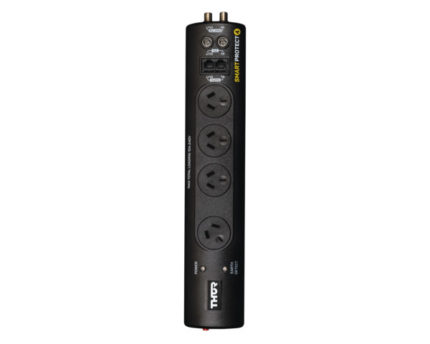

Print Description
TECHNICAL SMARTS
- Product Dimensions: 350mm (L) x 35mm (H) x 70mm (W)
- Supply voltage 240/V AC 50/Hz
- Maximum current rating 10amps/2400W(VA)
- Reaction time less than 1 nanosecond
- Maximum translent spike impulse current 86,000 amps (equivalent to 21,500 amps using UL 1449 standard)
- Maximum energy dissipation 3637 Joules (equivalent to 846 Joules using UL1449 standard)
- Protection modes (all 4 outlets protects on all 3 conductors). Active/Neutral, Active/Earth, Neutral/Earth
- EMI/RFI noise reduction filter type
- Total number of protected AC outlets: 4
- Total number of protected USB ports: 2
- Pay TV'F' type connection: 1 in and 1 out
- AV/TV antenna coax connection: 1 in and 1 out
- RJ 45 data protection: 1 in and 1 out
- Earth potential rise protection
- Earth leakage range less than 1 milli amp
- Operating conditions: Indoor/AC mains
- Operating temperatures: -10C/+60C
- Cable length: 1.2m
- Model No: E1/45S
INSIDE THE BRAIN
- All serious power protection diverts excess energy to earth first. If there is good earth connection then the protector will last longer. E1/45S has an earth detection LED for this reason. SmartBrain entry level filter is a passive technology. Managing to cover a more comprehensive range of shielding to like competitors by “cleaning” a wider range of unwanted frequency noise. The filter works both ways. Stopping noise from robbing equipment performance as well as connected devices’ noise contaminating power.
