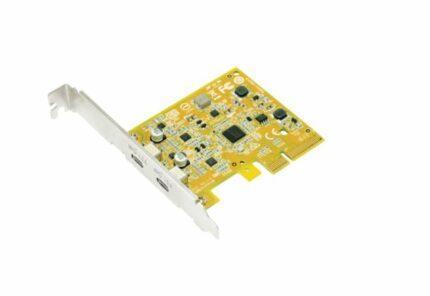

SUNIX USB2312C is a 2 port SuperSpeed+ USB 3.1 PCI Express card, and it’s compliant with the PCI Express Revision 2.0 & 3.0 for host PC system. Based on USB Type-C pure DFP (Downstream Facing Port) mode, it works up to 10 Gbps for data transfer when connecting to USB 3.1 compliant peripherals, while maintaining compatibility with existing USB peripheral devices. USB 3.1 performance is 2 times faster than USB 3.0 and 20 times faster than USB 2.0 connectivity.
With USB Type-C Receptacle, SUNIX USB2312C sports reversible plug orientation and cable direction, which means that users will no longer need to be concerned with plug orientation/cable direction, making it easier to plug in. The new connector is smaller and thinner design, but drive higher power output capacity to USB device. SUNIX USB2312C supports 5VDC@1500mA power output to USB device with over current protection on each USB port. This card is an ideal choice for external storage devices, digital cameras, webcam, video devices, and all other USB electronic devices.
BUS PCI Express Revision 2.0 & 3.0, Dual-Lane (x2)
Controller PCI Express USB 3.1 Host controller, Asmedia ASM3142
USB Standard eXtensible Host Controller Interface (xHCI) Rev1.1
Interface Universal Serial Bus 3.1 / 3.0 / 2.0 / 1.1
Speed SuperSpeed+(10Gbps), SuperSpeed(5Gbps), High Speed (480Mbps), Full Speed (12Mbps), Low Speed (1.5Mbps)
No. of Port 2-port
PCB Connector USB 3.1 USB Type-C port (Downstream Facing Port)
Protection ±15KV IEC61000-4-2 Air Gap Discharge
Source PCI Express bus power
USB Type-C Port : +5VDC / 1.5A
* USB Power Delivery Protocol does NOT support.
* Built-in over current protection on each USB port.
* Maximum total power output depends on the capacity of user’s power supply unit
Power Consumption 1.1 W @ 3.3V (board only without power output to USB device)
Windows Windows 7 (X86/X64)
Windows 8.x / 10 (X86/X64) (Windows in-box driver)
Linux Linux 4.6 or later
