Print Description

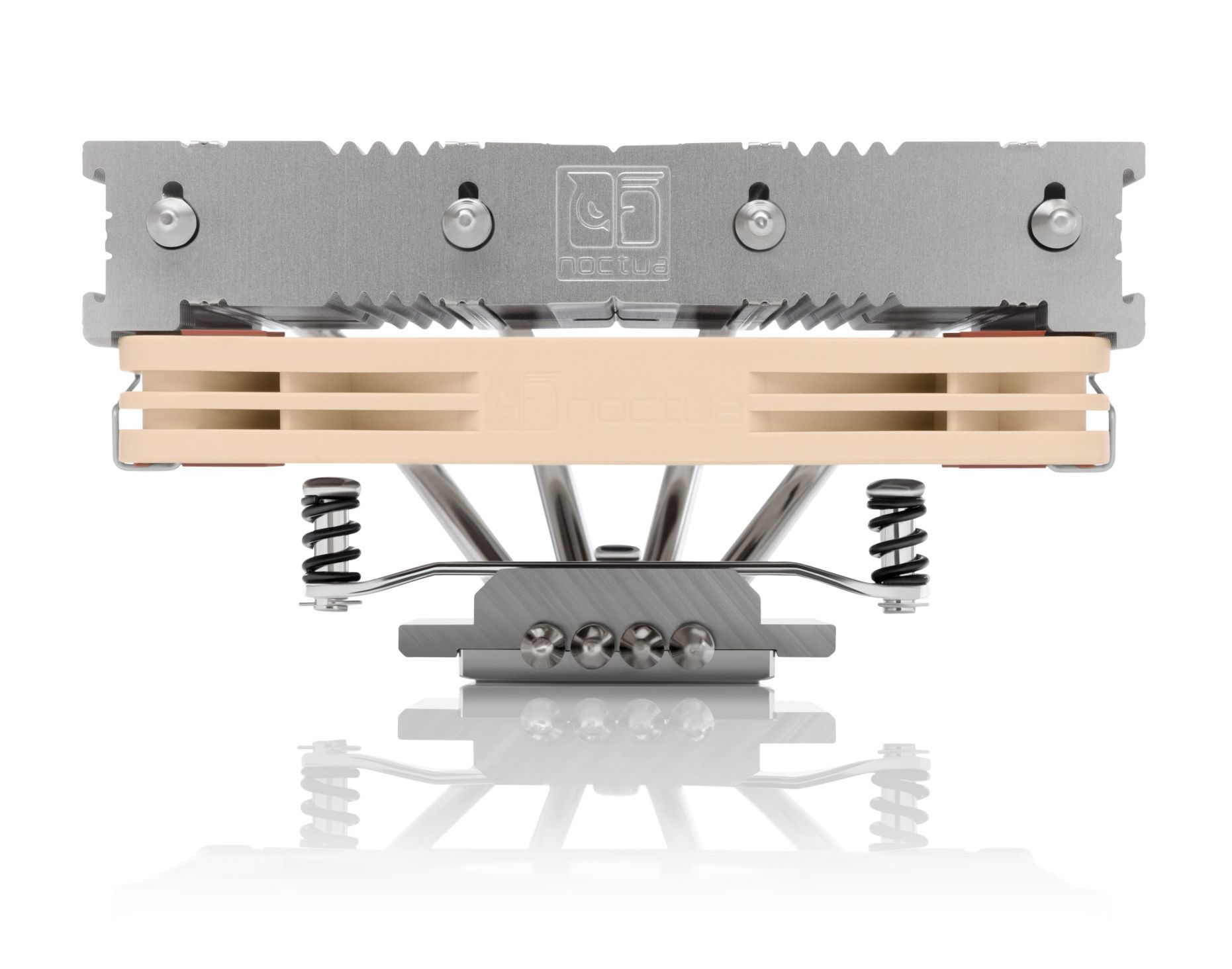

Cooler Specification
Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4
(Current socket compatibility applies to all coolers purchased since Q4 2021. For older coolers, please refer to this chart.)
Height (without fan)
70 mm
Width (without fan)
128 mm
Depth (without fan)
146 mm
Weight (without fan)
390 g
Height (with fan)
70 mm
Width (with fan)
128 mm
Depth (with fan)
146 mm
Weight (with fan)
520 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
88
Max. TDP
see NSPR
Fan compatibility
120x120x15 & 120x120x25
Scope of delivery
- 1x NF-A12x15 PWM premium fan
- NA-RC7 Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- SecuFirm2™ mounting kit
- Noctua metal case-badge
Model
Bearing
Max. rotational speed (+/- 10%)
1850 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1400 RPM
Min. rotational speed @ 20% PWM (+/-20%)
450 RPM
94,2 m³/h
Max. acoustical noise
23,9 dB(A)
Max. acoustical noise with L.N.A.
16,8 dB(A)
Input power (max.)
1,56 W
Voltage range
12 V
MTTF
> 150.000 h
