Print Description

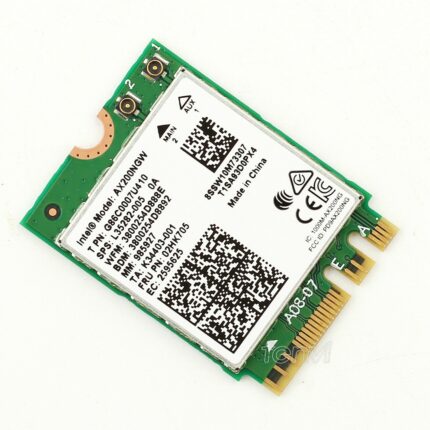

*Intel(R) Wi-Fi 6 AX200 160MHz
*abgn+ac+ax, 2×2:2 NGFF
*2×2 WLAN/BT NGFF Combo Adapter Card
Essentials
- Type: AX 200
- Size : length 2.2cm, width 1.0cm , height 3.0cm
- Product Collection： Intel Wireless Products
- Code Name： Products formerly Cyclone Peak
- Supported Operating Systems： Windows 10, 64-bit*, Google Chrome OS*, Linux*
Networking Specifications
- TX/RX Streams： 2×2
- Bands： 2.4Ghz, 5Ghz (160Mhz)
- Max Speed： 2.4Gbps
- Wi-Fi CERTIFIED*： 802.11ax
- Compliance： FIPS, FISMA
- Bluetooth Version: Bluetooth 5.0
- Integrated Bluetooth： Yes
- Board Form Factor： M.2 2230
- MU-MIMO： Yes
- Supported Under Intel vPro Technology： Yes
Compatible With:
- It can used on Samsung/Dell/Sony/ACER/ISUS/MSI/Clevo/Terransforce/Hasee etc(Do not include lenovo and HP,if it can use after rewrite the whitelist )
- Not support IBM/Thinkpad/Lenovo/
- Wirelessly Project to the Big Screen:Project your 2-in-1 or laptop content instantly, without wires, on the big HD screen with stunning image clarity and sound using Wi-Fi Miracast*. Stream movies, videos, games, photos, connect with friends, and more. Experience it all, bigger and better than ever before.
Details:
- In late January, we learned Intel’s new Wi-Fi adapter, formerly known as Cyclone Peak, would come to market using the latest AX/Wi-Fi 6 standards. Jumping to today, Intel has released the Wi-Fi 6 AX200 adapter. The M.2 module uses the 802.11ax (Wi-Fi 6) standard that’s said to deliver faster performance, plus lower latencies and lower battery consumption.
- The AX200 arrives in an M.2 2230 form factor (1216 as well), supporting a maximum speed of 2.4 Gbps on the 5 GHz (160 MHz) band and around 574 MB/s using 2.4 GHz band (802.11ax in both). The module supports MU-MIMO, 2×2 TX/RX channels with two antennae and Bluetooth 5. In addition to Windows 10 and Google Chrome OS, there’s also Linux support, enabled in the Linux 5.1 kernel.
Wirelessly Project to the Big Screen
- Project your 2-in-1 or laptop content instantly, without wires, on the big HD screen with stunning image clarity and sound using Wi-Fi Miracast*. Stream movies, videos, games, photos, connect with friends, and more. Experience it all, bigger and better than ever before.
Intel vPro Technology
- Supports Intel’s hardware-based security and management features built into Intel Core vPro processors and chipsets that enable IT to manage PCs virtually anywhere, anytime, while reducing deployment costs, improving security and ROI.
