Description

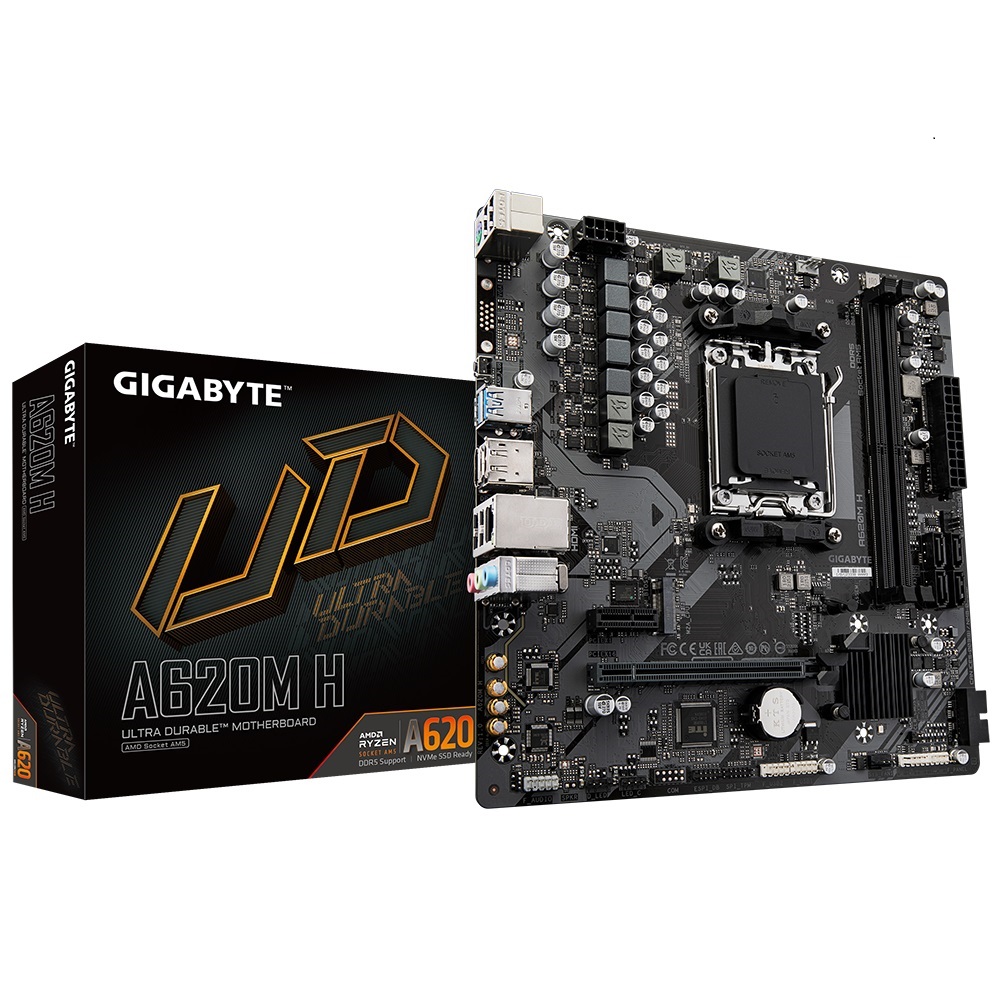

Gigabyte A620M H 1.0 AMD mATX MB 2xDDR5 1xM.2, 4xSATA,1xPCIE16, 1xPCIE1, 1xHDMI 1xDisplayport 2 x USB 3.2 4 x USB 2.0

KEY FEATURES:
AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：5+2+2 Phases Digital VRM Solution
Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ Intel® XMP Memory Module Support
SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
PCIe x16 EZ-Latch with Quick Release Screwless Design
Fast Networks：GbE LAN
Extended Connectivity：DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

SPECIFICATION:
CPU
AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE’s website for the latest CPU support list.)
(Please refer “CPU Support List” for more information.)
Chipset
AMD A620

Memory
Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture

Onboard Graphics
Integrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

Expansion Slots:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage
1 x M.2 connector
4 x SATA

Back Panel Connectors
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
3 x audio jacks

Form Factor
Micro ATX Form Factor; 23.0cm x 22.5cm
