Description

DESCRIPTION

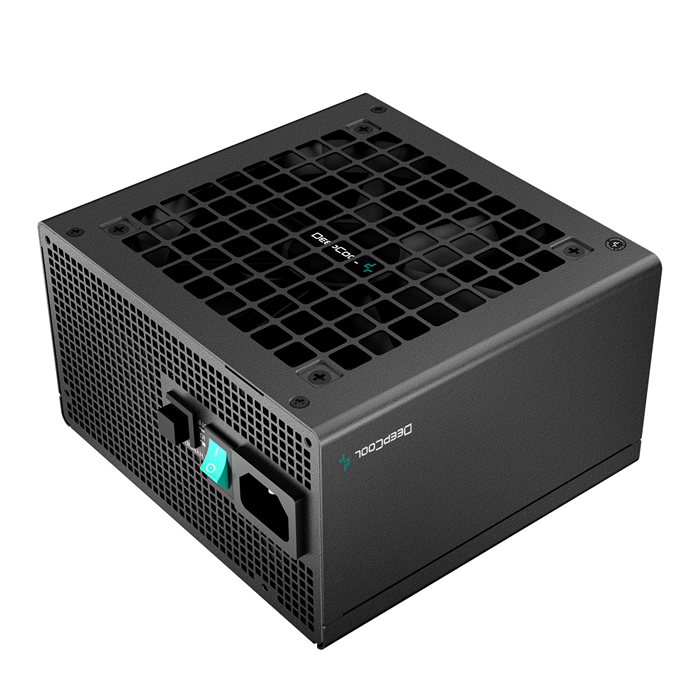

DeepCool PQ-M Series 80 PLUS Gold Modular Power Supply delivers high efficiency and stability for performance PC systems needing ultra-quiet operation with silent fan modes.

Certified 80 PLUS Gold for generating clean and consistent power while reducing heat waste and noise. The PQ-M Series achieves 90% efficiency at 50% system loads.

Type ATX12V V2.4
Product Dimensions 150×140×86mm (W x L x H)
80PLUS Certifications GOLD
Fan Size 120mm
Fan Bearing FDB
Topology Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors Full Japan Electrolytic Capacitors
Power Good Signal 100-500ms
Hold Up Time ≥16ms (90% load)
Efficiency ≥90% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP
Operation Temperature 0 – 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
Regulatory CCC/CE/FCC/TUV-SUD/cTUVus/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA
Erp Regulation ErP 2013
MTBF 100,000 Hours
