Description

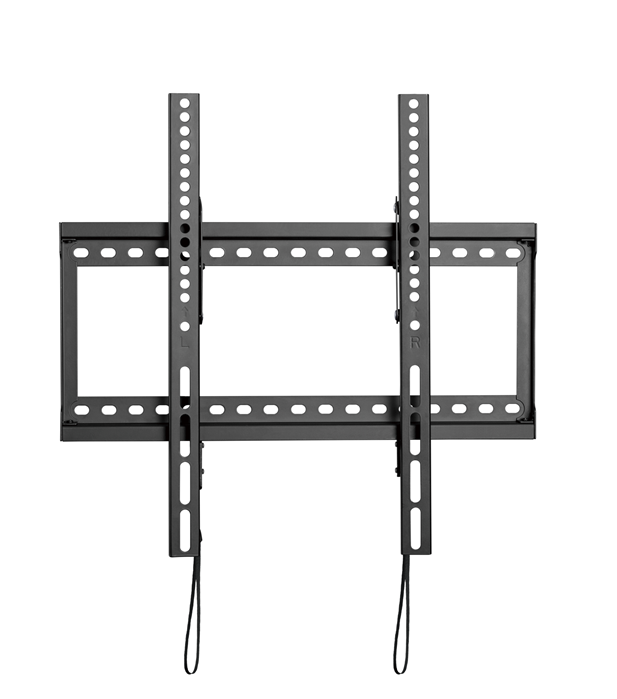

Brateck Tilt TV Wall Mount For 32′-70′ up to 75KG, VESA Compatible: 50×50,75×75,100×100,100×150,100×200,200×200,300×200,200×400 Fine Texture Black

FEATURES:
●Reduced Package Size: relatively lower transport costs and storage fees (perfect for e-commerce platform sellers)
●Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Open Architecture: provides increased ventilation and easier access to wires

SPECIFICATIONS
Product Category: Tilt TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059′ cold-rolled sheet,Wall Plate THK=0.059′ cold-rolled sheet)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 37x438x420mm (1.5’x17.2’x16.5′)
Fit Screen Size: 32′-70′
Fit Curved TV: Yes
Mounting Hole Pattern: VESA Universal
VESA Compatible: 50×50,75×75,100×100,100×150,150×100,100×200,200×100,150×150,200×200,300×200,200×400,400×200,300×300,400×300,350×350,400×400
Max. Mounting Hole: 400×400
Weight Capacity: 75kg (165lbs)
Strength Tested: 3 Times Approved
Profile: 37mm (1.5′)
Tilt Range: 0°~-8°
Installation: Solid Wall,Double Stud(406mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
Accessory Kit Package: Compartment Polybag
