Description

Unique Multilateral Shaped ighting Frame Projects. Various Lighting Effects

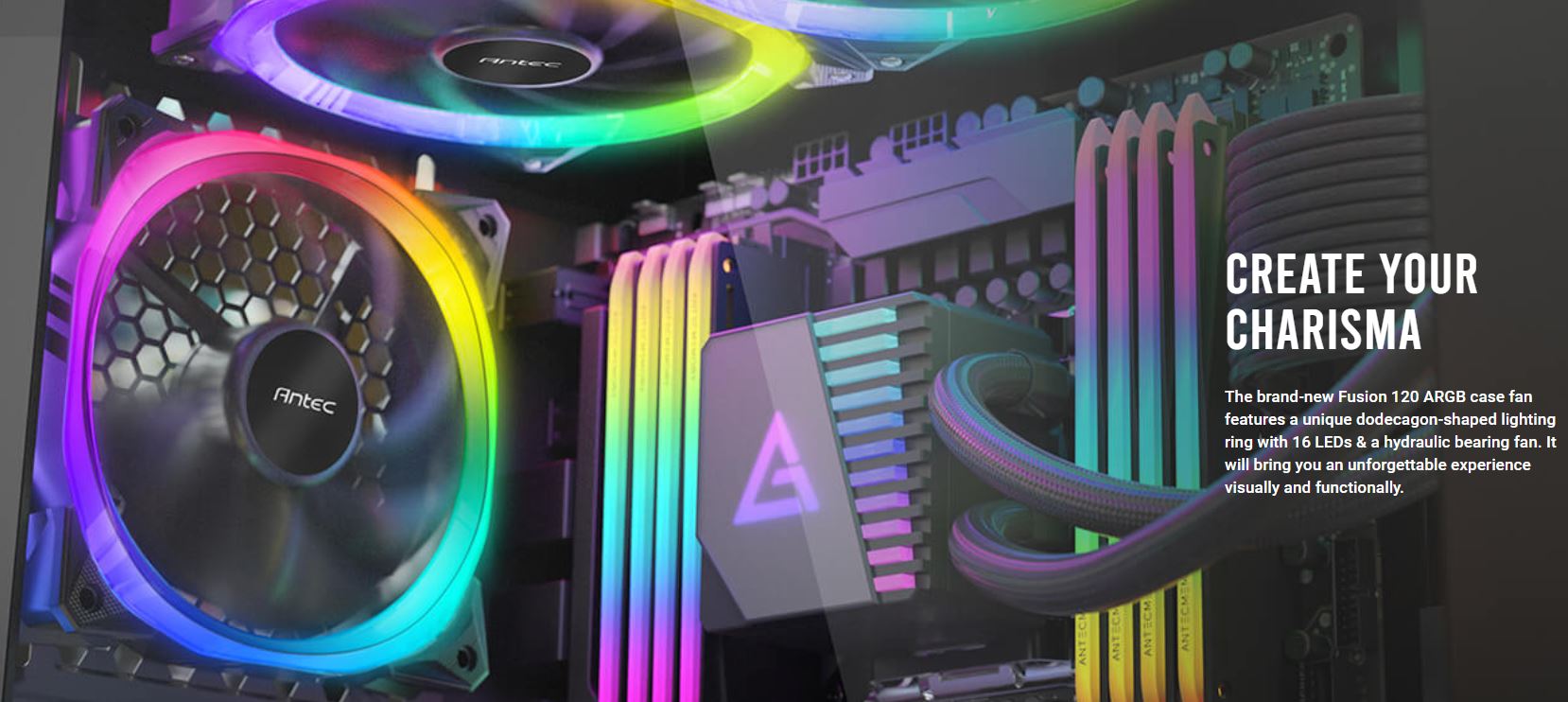

The unique dodecagon-shaped lighting ring with 16 LEDs projects various lighting effects from many angles.

Wonderful Texture
The well-processed fan structure and unique shape of fine craftsmanship bring the fan quality to the next level.

Hydraulic Bearing fan
Extends the lifespan and reduces the noise.

8 Enlarged
Anti-Vibration Pads
The anti-noise design with 8 anti-vibration pads can efficiently reduce noise.

Model Name Fusion 120 ARGB
Fan Type PWM Fan
Dimensions 120*120*25 mm
Bearing Type Hydraulic Bearing
LED Type Addressable RGB
Fan Speed 600±200~2000±10% RPM
Airflow 57.93 CFM (max.)
Air Pressure 2.11 mmH₂O (max.)
Fan Noise Level 17.02~31.24 dB(A)
Lifespan 40,000 hours /hrs 25°c
Connector FAN: 4-pin PWM | LED: 3-pin
Rated Voltage FAN: DC 12 V | LED: DC 5 V
Operation Voltage FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V
Rated Current FAN : ≤ 0.21 A | LED : ≤ 0.58 A
